Description

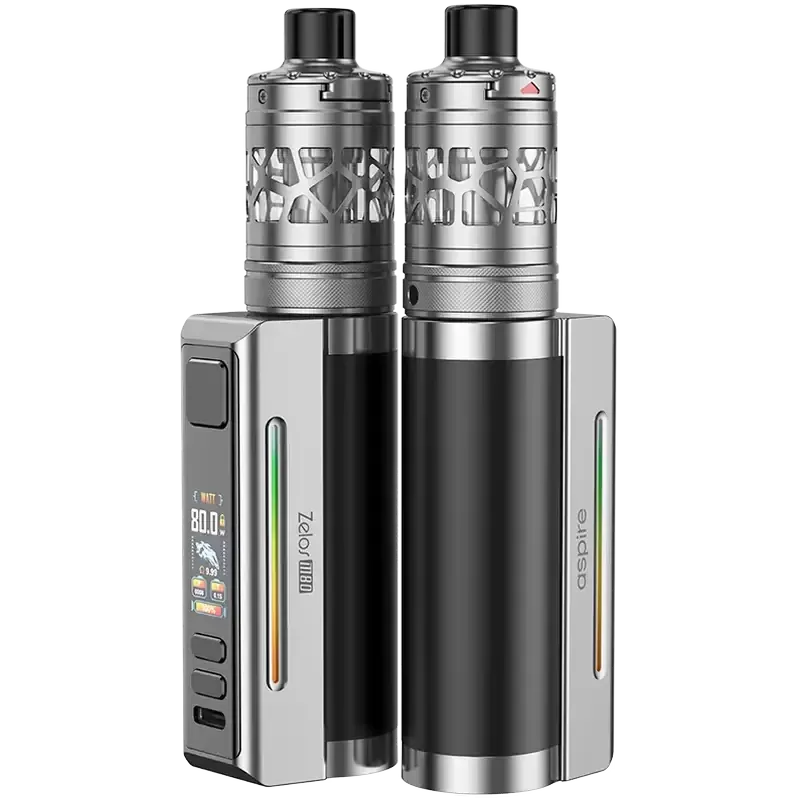

Power, precision, portability. The Aspire Zelos M80 pairs an 80 W mod and 2600 mAh battery with the Nautilus 3SR tank for clean top-fill refills, precise airflow and legendary Nautilus-series flavour. Five output modes, a vivid 0.96″ TFT screen and a handy lock switch make everyday vaping simple whether you prefer tight MTL or airy DTL draws. 80 W adjustable output with WATT / VOLTAGE / BYPASS / TC / CPS modes
Built-in 2600 mAh battery + USB-C 2A fast charging
Nautilus 3SR tank — clean top-fill design & bottom airflow control
0.96″ TFT colour screen with dual LED indicators & multiple light effects
Lock / Unlock switch for safe carry (fire & +/– button lock)
Compatible with the full Nautilus coil family + Triton Mini Clapton
Capacity: 2 ml (TPD) 5 Output Modes WATT, VOLTAGE, BYPASS, TC and CPS give you fine-tuned control for every e-liquid and coil. 2600 mAh + USB-C 2A All-day battery with super-fast 2A USB-C charging to keep you moving. Clear Display 0.96″ TFT screen with 8 brightness levels, plus dual LEDs for style and status at a glance. Carry-Safe Lock Lock the fire and adjustment buttons to prevent pocket presses and keep settings secure. Top-Fill Tank Nautilus 3SR delivers clean top-fill refills, leak-resistant design and smooth bottom airflow control. Nautilus Coils Use the full Nautilus family (plus Triton Mini Clapton) to tailor MTL → DTL exactly how you like it. Coil Guide — Nautilus 3SR Tank Coil
Style
Recommended Wattage
Best With Nautilus BVC 1.8 Ω
MTL (tight)
10–14 W
50/50 & higher-strength Nautilus BVC 1.6 Ω
MTL
7–11 W
50/50 & higher-strength Nautilus Mesh 1.0 Ω
MTL (warm)
13–15 W
50/50 Nautilus 2 0.7 Ω
MTL → RDL
18–23 W
50/50 or 60/40 Nautilus 2S Mesh 0.7 Ω
RDL
20–25 W
50/50 or 60/40 Nautilus 2S 0.4 Ω
RDL → DTL
23–28 W
60/40 or 70/30 Nautilus Mesh 0.3 Ω
DTL (airy)
23–28 W
70/30 Triton Mini Clapton 1.8 Ω
MTL
13–16 W
50/50 Tip: Higher resistance (≥1.0 Ω) suits tighter MTL and higher strength e-liquids. Lower resistance (≤0.7 Ω) suits airier RDL/DTL and lower strength e-liquids. How to Use Install a coil (if not pre-installed), prime with a few drops of e-liquid.
Top-fill the tank via the Nautilus 3SR’s slide/top cap. Close firmly.
Wait 5–10 minutes on a new coil to saturate the wick.
Set your mode & wattage on the Zelos M80. Start low, then increase to taste.
Adjust airflow at the tank base for tight MTL through airy DTL.
Use the lock switch when pocketing to avoid accidental presses. Specifications Product
Aspire Zelos M80 Kit with Nautilus 3SR Output
5–80 W (WATT / VOLTAGE / BYPASS / TC / CPS) Battery
Built-in 2600 mAh, USB-C 2A Screen
0.96″ TFT colour, 8 brightness levels Indicators
Dual LEDs with multiple light effects Lock
Physical lock / unlock switch (fire & +/–) Tank
Nautilus 3SR — Top-fill, bottom adjustable airflow Capacity
2 ml (TPD) Coils
Nautilus family + Triton Mini Clapton compatible Kit Dimensions
123.5 × 25 × 35.3 mm Mod Dimensions
74 × 25 × 35.3 mm Safety
Over-time, Short-circuit, Low Voltage, Overcharge, Overheat, Abnormal Charge What’s in the Box 1 x Aspire Zelos M80 Device
1 x Nautilus 3SR Tank
1 x 0.3Ω Nautilus Meshed Coil (preinstalled)
1 x 1.8Ω Nautilus BVC Coil
1 x Spare Drip Tip
1 x Spare Tank Tube
1 x O-rings Pack
1 x Type-C Cable
1 x User Manual Age Verification: 18+ only. This product does not contain nicotine when sold. Always follow local regulations and the user manual.
