Description

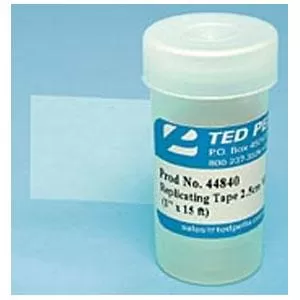

DESCRIPTION Cellulose acetate tapes and sheets provide a quick and convenient way for replicating surfaces particularly from samples which can not be sectioned or investigated directly. The replication materials are available in a variety of sizes and thickness to cover a wide range of applications. They soften in acetone and can be applied to a surface which has been wet with acetone. They are stripped off when dry. Thicknesses of 22 is used for finer detail replication. Tri-acetate, a thicker (130µm) replicating sheet, is suitable for replicating rough surfaces. For fine detail, positive replicas can be made by coating the surface of the replica with carbon in a high vacuum carbon coater and then dissolving the replication sheet. The carbon replica can then be examined in the TEM. Alternatively, the replica can be coated with a conductive coating (such as gold) and examined in the SEM as a negative replica. The replication tapes are packed as rolls in a dispenser and the sheets are supplied in packs of 20. PELCO® Technical Notes, Cellulose Acetate Replicating Film (80KB PDF) SDS (86KB PDF) 44840 – Thin Replicating Tape, 22µm, 25mm wide x 4.5m long, 1″ x 15 ft 44841 – Thin Replicating Tape, 22µm, 38mm wide x 4.5m long, 1-1/2″ x 15 ft 44858 – Thick Replicating Tape, 125µm, 25mm wide x 4.5m long, 1″ x 15 ft
