Description

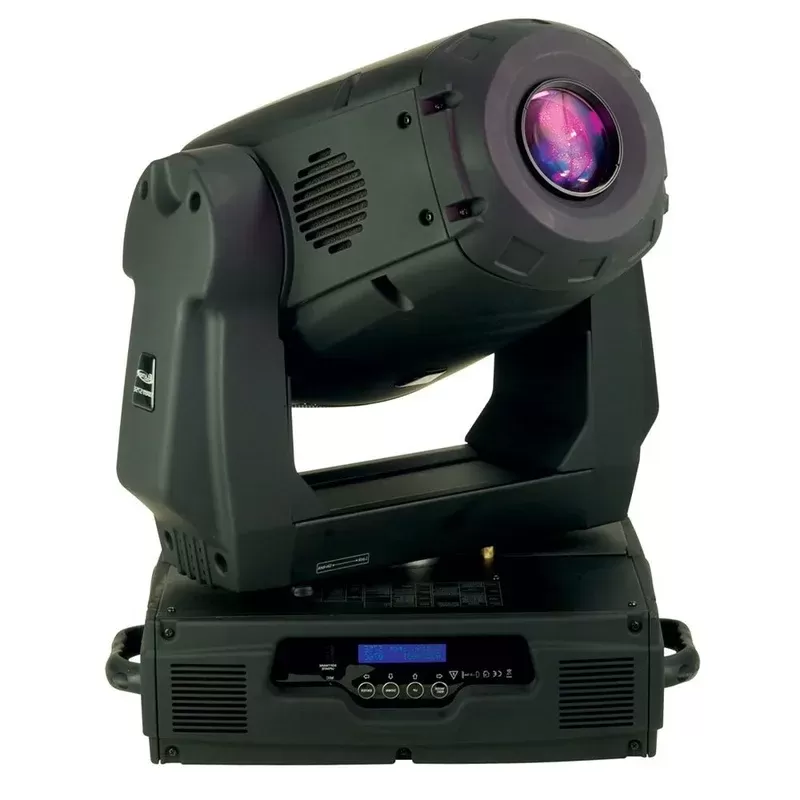

Elation Design Spot 575E Features: Optical System: High output luminous-parabolic dichroic reflector
15? to 30? linear Zoom
All lenses are anti-reflection coated
29,700 lux @ 2.5M Colors: Full Color mixing with CMY flag system
8 Dichroic filters, 7 color, UV + White
Continuous, variable speed, color scrolling in both directions (rainbow effect)
More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel Gobos: 2 gobo wheels, 12 total gobos, 6 metal, 6 glass
6 interchangeable, indexable, rotating gobos plus open
6 interchangeable, indexable, rotating gobos plus open
Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
Glass Gobo Size: 26.7mm outside diameter, 23mm image diameter
Gobo Overlay (Gobo Morphing) Animation: 1 rotating animation wheel Shutter/Dimmer: Variable speed strobe effect (1-13) flashes per second
Pre-set variable/random strobe and dimming pulse effect
Dual Flag mechanical dimming system Iris: Beam narrow to wide (5% – 100%)
Variable speed iris macros
Small to large and large to small Frost: Variable Frost Control
Hard edge to soft edge Prism: 3-facet rotating/Indexing Prism
Both directions at variable speeds
Macro-function for rotating gobos/rotating prism combinations Focus: Motor driven focus from near to far Zoom: 15 – 30 degree linear Zoom Control Features: RDMX – Remote DMX Addressing
USITT DMX-512 (16-bit resolution)
24 DMX Channels
32-Character LCD display
On board menu settings
3-pin XLR serial input/output
Sound active mode Lamp: Phillips MSR575/SA2DE 7500K, 1000hr Pan/Tilt: Automatic Pan / Tilit position correction
Maximum PAN-movement 630? in 2.0 secs (default) or 540? (user selectable) / 16 bit
Maximum TILT-movement 265? in 1.5 secs / 16 bit
Vector Mode with blackout Rigging: 2 X 1/4 Turn omega bracketsPower Supply: Electronic Ballast Voltage 90- 240vAC 50/60Hz Power Consumption: 600W (120V = 7A)Optional Dual Road Case: DRC-700
