Description
6 levers, 0.01-0.60N/m, Au Reflex Coating DESCRIPTION
TIP SPECIFICATIONS CANTILEVER SPECIFICATIONS Bruker AFM Probes has introduced an improved version of its popular MLCT AFM probes. Bruker’s new line of MLCT-BIO high-quality, performance probes set the industry standard for imaging in fluid and force spectroscopy of biological samples. MLCT-BIO incorporates a larger tip radius and apex angle for consistent cell imaging, and has a proprietary design to improve the success rate of force pulling experiments. (Also see model MLCT-BIO-DC for a low thermal sensitivity version of the probe.) Get exceptional pulling force curve data sing the MLCT-Bio probes on the new BioScope Resolve! Bruker’s BioScope Resolve™ BioAFM features the highest resolution atomic force microscopy imaging and most complete cell mechanics capabilities available for use with an inverted optical microscope. Tip Geometry:

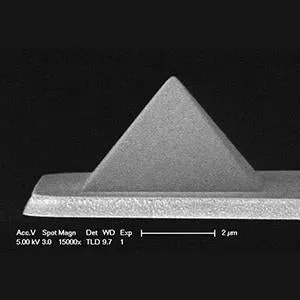

Pyramidal Tip Height:
2.5 – 4.5 Front Angle:
35 ± 2 Back Angle:
35 ± 2 Side Angle:
35 ± 2 Tip Radius (Nom):
20 Tip Radius (Max):
60 Tip Set Back (Nom):
4.5 Tip Set Back( RNG):
0 – 7 All cantilevers have less than +/- 2 deg bend. Cantilever Thickness (Nom):
0.55 Cantilever Thickness (RNG):
0.5 – 0.6 Cantilever Geometry:
Rectangular & Triangular Cantilevers Number:
6 Back Side Coating:
Reflective Gold
