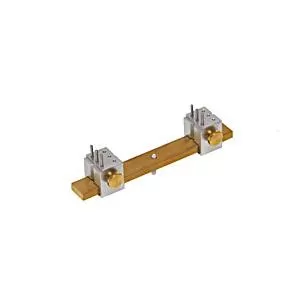

DESCRIPTION SEM Pin Mount Specimen Holders for Scanning Electron Microscopy A large selection of SEM specimen holders for SEMs, FESEMs, and FIB systems, which are using the standard 3.2mm (1/8″) pin type mount. Some of the larger holders require a larger specimen chamber and a larger stage. Depending on the available distance, Z-movement and maximum specimen height provided by the specimen stage in the SEM, pin stub extenders might be added to obtain the optimized working height. See Hitachi M4 Holders if you have a Hitachi SEM, FESEM, or FIB system. These specimen holders can also be used on JEOL SEMs if a pin mount adapter to JEOL cylinder mount is used (#15362, #15362-12, #15362-15, #16153-9, or #16216-9). Used on FEI/Philips, ZEISS, LEO, Leica, Cambridge Instruments, CamScan and Tescan SEMs The PELCO® Bar Clamp Vise is available in three lengths; 102mm (4″), 152mm (6″) and 203mm (8″) with the same clamps for each version. This bar type clamp can accommodate specimens up to 72mm (3″), 127mm (5″) and 178mm (7″) in length respectively. The jaws are reversible, offering different clamping options and they operate independently anywhere on the clamping bar. This will allow for positioning the region of interest of the specimen within the travel range of the SEM stage. Stainless steel 1/16″ pins (6 pins are included) can be placed on the clamps for awkwardly shaped samples. Clamping bars and clamps can be purchased additionally to make up the best functional set for the job at hand. Made of vacuum grade aluminum with brass bar and brass thumbscrews and stainless steel type 316 dowels. Standard 3.2mm (1/8″) pin with 9.5mm (3/8″) length. Replacement Clamp for PELCO Bar Clamp Vise Overall size for the 102mm(4″) version: LxWxH 102 x 22 x 19mm (4″ x 7/8″ x ¾”)
Overall size for the 152mm (6″) version: LxWxH 152 x 22 x 19mm (6″ x 7/8″ x ¾”)

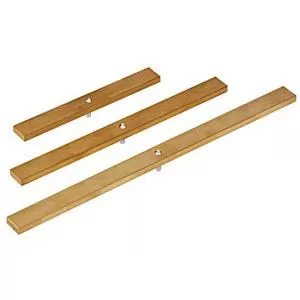

Overall size for the 203mm (8″) version: LxWxH 203 x 22 x 19mm (8″ x 7/8″ x ¾”) PELCO® Technical Notes: PELCO® Bar Clamp Vise, 4, 6, and 8″ (80KB PDF)Screw used is 4-40 x 3/8, Thumb, Brass 15477 – PELCO® Bar Clamp Vise, 102mm (4″), complete with bar and two clamps, Pin, each 15476 – PELCO® Bar Clamp Vise, 152mm (6″), complete with bar and two clamps, Pin, each 15478 – PELCO® Bar Clamp Vise, 203mm (8″), complete with bar and two clamps, Pin, each 15477-10 – Additional Clamp for 102mm (4″), 152mm (6″) or 203mm (8″) bar, each 15477-40 – Additional 102mm (4″) bar, Pin, each 15476-60 – Additional 152mm (6″) bar, Pin, each 15478-80 – Additional 203mm (8″) bar, Pin, each 15341-20 – Replacement Pins for Vise Clamp, 1/2″ long, pkg/10
