Description

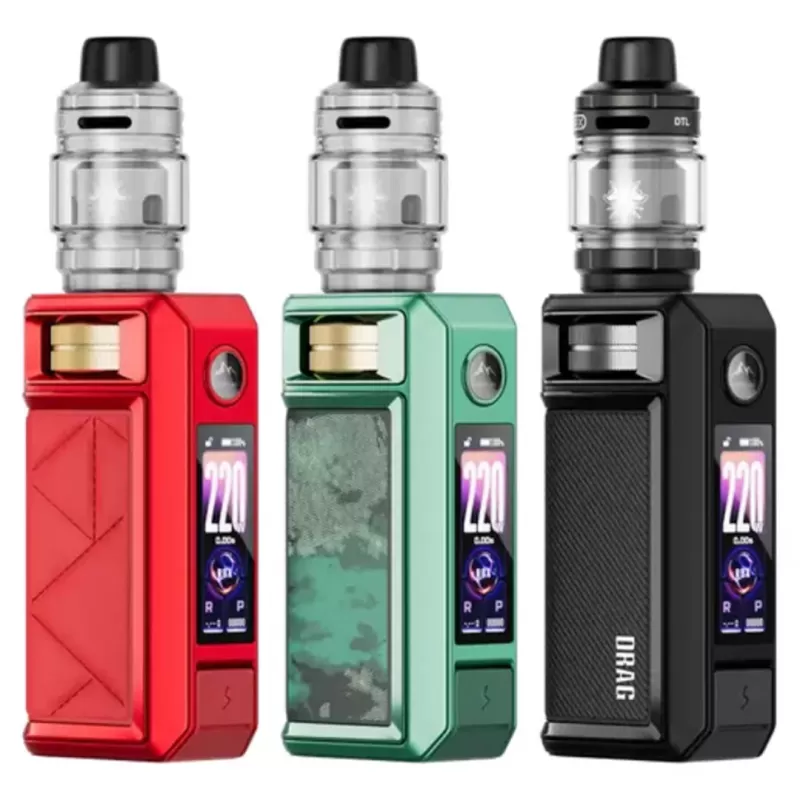

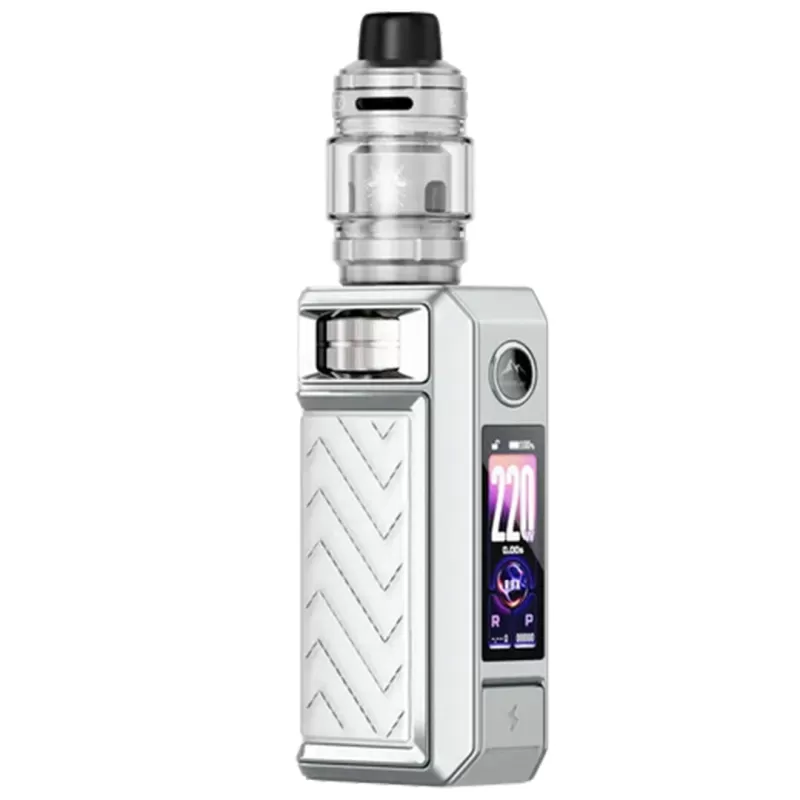

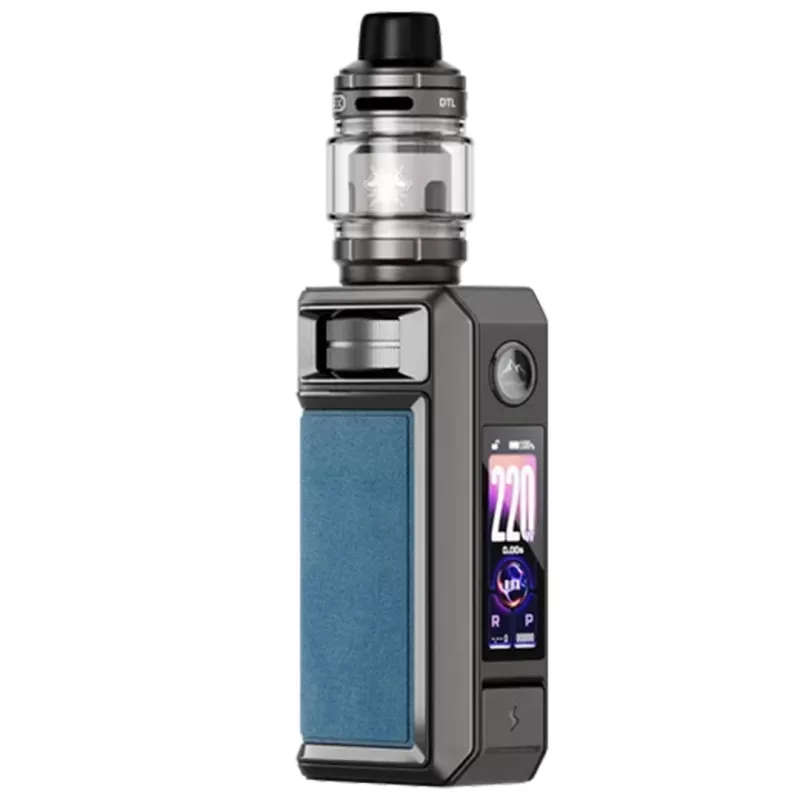

VooPoo Drag 6 Sub-Ohm Vape Kit
Next-generation 220W performance with GENE TT 3.0 chipset and dual 2200mAh batteries Experience next-generation sub-ohm vaping with the VooPoo Drag 6, a 220W mod kit engineered for serious vapers. The dual 2200mAh internal battery (4400mAh total) charges rapidly via USB-C, while the GENE TT 3.0 chipset ensures stable output from 5W to 220W. Navigate settings effortlessly with the side-mounted precision wheel and monitor performance on the 1.66-inch TFT display. The included UFORCE-X Tank II pairs with dual PnP X coils—0.15Ω for direct-to-lung and 0.3Ω for restricted direct-lung—compatible with shortfill and high-VG e-liquids up to 6mg nicotine. Key Features ⚡ 220W output from 5W to 220W for full sub-ohm performance
🔋 4400mAh built-in battery (2 x 2200mAh) with USB-C charging up to 5V/3A
🧠 GENE TT 3.0 chip for fast firing, stable output, and safety protections
🎛️ Precision control wheel for smooth, accurate wattage adjustment
🔒 Capacitive touch unlock to prevent accidental firing
📱 1.66 inch TFT display for clear settings and battery monitoring
💨 UFORCE-X Tank II with top fill and refined airflow
🔧 PnP X coil platform with 0.15Ω and 0.3Ω coils included
🏗️ Aluminium alloy body with stainless steel and glass tank construction Advanced Technology GENE TT 3.0 Chipset
The GENE TT 3.0 is VooPoo’s latest chipset and it handles everything from firing speed to safety. Response time is faster than the previous generation, so there’s less delay between pressing fire (or touching the sensor) and the coil heating up. Output stays consistent across the wattage range, which matters more at higher power where cheaper chips tend to sag as the battery drains. Built-in protections cover short circuit, overcharge, over-discharge, and over-temperature. The chip also supports a resistance range from 0.05 to 3.0Ω, so it’ll handle everything from the included sub-ohm PnP X coils through to higher resistance builds if you pair the mod with a different tank. Precision Control Wheel and Touch Unlock
The Drag 6 replaces the standard up/down buttons with a precision control wheel on the side of the mod. Wattage adjustment is smoother and faster than button tapping, especially when you’re jumping between the low and high ends of a 5 to 220W range. Locking works through a capacitive touch sensor rather than a five-click sequence. Touch the sensor to unlock, release to lock. It prevents accidental firing in pockets or bags without the hassle of clicking a button five times every time you want to pick the kit up. UFORCE-X Tank II and PnP X Coils
The kit ships with the UFORCE-X Tank II, which is VooPoo’s updated sub-ohm tank with refined airflow and top fill. Two PnP X coils are included in the box for different vaping styles and preferences. Understanding Sub-Ohm Vaping
Sub-ohm vaping refers to using coils with a resistance below 1.0Ω. This allows for higher wattage output, increased vapour production, and enhanced flavour delivery. The Drag 6’s dual coil options (0.15Ω and 0.3Ω) are optimized for high-VG e-liquids and deliver a direct-to-lung (DTL) vaping experience preferred by experienced vapers. Technical Specifications Specification
Details Output Power
5W – 220W Battery Capacity
4400mAh (2 x 2200mAh built-in) Charging
USB-C, 5V/3A Chipset
GENE TT 3.0 Resistance Range
0.05Ω – 3.0Ω Display
1.66 inch TFT screen Tank Capacity
UFORCE-X Tank II Coils Included
PnP X 0.15Ω, PnP X 0.3Ω Construction
Aluminium alloy, stainless steel, glass Weight
200g What’s in the Box 1 x VooPoo Drag 6 mod (built-in 2 x 2200mAh battery)
1 x UFORCE-X Tank II (PnP X)
1 x PnP X 0.15Ω coil
1 x PnP X 0.3Ω coil
1 x PnP X platform card
1 x Spare glass section
1 x Silicone rubber pack
1 x USB-C cable
1 x User manual Frequently Asked Questions What type of e-liquid should I use with the Drag 6?
The Drag 6 is designed for high-VG shortfill e-liquids (typically 70VG/30PG or higher) with nicotine strengths up to 6mg. The sub-ohm coils are optimized for thicker liquids and produce substantial vapour, making them unsuitable for high-nicotine or nicotine salt e-liquids. How long does the battery last?
Battery life depends on your wattage settings. At moderate wattage (40-60W), expect a full day of regular use. At maximum output (220W), battery life will be significantly shorter. The USB-C fast charging (5V/3A) can fully recharge the 4400mAh battery in approximately 90-120 minutes. What’s the difference between the 0.15Ω and 0.3Ω coils?
The 0.15Ω coil is designed for direct-to-lung (DTL) vaping at higher wattages (60-80W), producing maximum vapour and intense flavour. The 0.3Ω coil offers a restricted direct-lung experience at lower wattages (32-40W), providing a balance between vapour production and battery life with a slightly tighter draw. Can I use other PnP coils with this kit?
Yes, the UFORCE-X Tank II is compatible with the entire VooPoo PnP X coil range, giving you flexibility to customize your vaping experience. However, ensure you stay within the recommended wattage range for each coil type to avoid dry hits or premature coil failure. Is this kit suitable for beginners?
The Drag 6 is best suited for intermediate to advanced vapers familiar with sub-ohm vaping. While the interface is user-friendly, the high power output and sub-ohm coils require understanding of proper wattage settings, e-liquid selection, and coil maintenance. Beginners may prefer starting with a pod system or lower-wattage MTL device. How do I prime the coils?
Before first use, install the coil, fill the tank with e-liquid, and wait 5-10 minutes to allow the cotton to fully saturate. Start at the lower end of the recommended wattage range and gradually increase to your preferred setting. This prevents dry hits and extends coil lifespan. What safety features does the GENE TT 3.0 chip include?
The GENE TT 3.0 chipset includes comprehensive safety protections: short circuit protection, overcharge protection, over-discharge protection, over-temperature protection, and low voltage warning. These features ensure safe operation and protect both the device and user. How often should I replace the coils?
Coil lifespan varies based on usage, e-liquid type, and wattage settings. Typically, expect 1-3 weeks per coil. Replace when you notice reduced flavour, burnt taste, or decreased vapour production. Sweeter e-liquids may reduce coil life due to faster buildup of residue. Wholesale Enquiries Welcome
Premium VooPoo products available for trade customers. Contact us for wholesale pricing, bulk orders, and partnership opportunities.
